目前knative v1.1.0版本还是基于域名进行转发流量到服务。

而大多数使用场景是:

  1. 服务对外域名一般都是固定的,而且可能有多个。
  2. 服务一般都是在域名的某一路径下面,即一个域名由多个服务组成。
  3. 灰度基于多个header头之间and or关系。

下面讨论如何实现这些需求

绑定域名

除了使用knative的默认域名,knative提供了domainMapping来绑定额外域名。

创建一个name为example-nginx的knative service,会生成example-nginx.default.example.com域名。

example-nginx再绑定一个域名out.com

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  annotations:
    serving.knative.dev/creator: admin
    serving.knative.dev/lastModifier: admin
  name: example-nginx
  namespace: default
spec:
  template:
    metadata:
      creationTimestamp: null
    spec:
      containerConcurrency: 0
      containers:
      - image: xxx.com/k8s/test-nginx:v1.21
        name: nginx
        ports:
        - containerPort: 80
          protocol: TCP
        readinessProbe:
          successThreshold: 1
          tcpSocket:
            port: 0
        resources: {}
      enableServiceLinks: false
      timeoutSeconds: 300
  traffic:
  - latestRevision: true
    percent: 50
  - latestRevision: false
    percent: 50
    revisionName: example-nginx-00006
    tag: canary
status:
  address:
    url: http://example-nginx.default.svc.cluster.local
  conditions:
  - lastTransitionTime: "2022-01-12T13:07:07Z"
    status: "True"
    type: ConfigurationsReady
  - lastTransitionTime: "2022-01-12T13:08:15Z"
    status: "True"
    type: Ready
  - lastTransitionTime: "2022-01-12T13:08:15Z"
    status: "True"
    type: RoutesReady
  latestCreatedRevisionName: example-nginx-00006
  latestReadyRevisionName: example-nginx-00006
  observedGeneration: 13
  traffic:
  - latestRevision: true
    percent: 50
    revisionName: example-nginx-00006
  - latestRevision: false
    percent: 50
    revisionName: example-nginx-00006
    tag: canary
    url: http://canary-example-nginx.default.example.com
  url: http://example-nginx.default.example.com
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
apiVersion: serving.knative.dev/v1beta1
kind: DomainMapping
metadata:
  name: out.com
  namespace: default
spec:
  ref:
    name: example-nginx
    namespace: default
    kind: Service
    apiVersion: serving.knative.dev/v1

底层实现原理

knative service和DomainMapping都会生成knative ingress资源,knative使用ingress抽象了流量转发,而net-istio是使用istio来做流量转发流量转发的实现。net-istio组件将knative的ingresss对象转成istio的virtualservice。

所以绑定域名,其实就是在操作knative ingress和istio virtualservice。

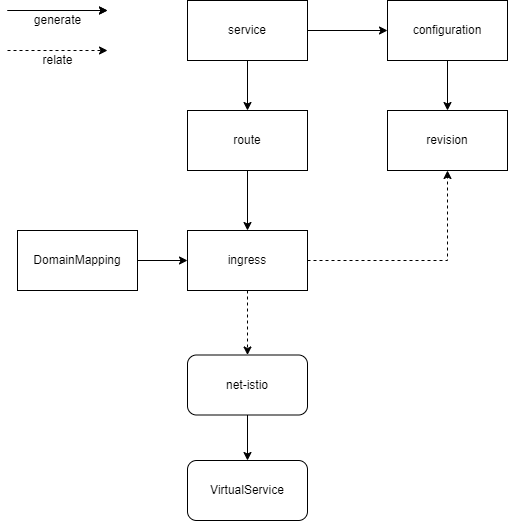

各个资源的父子关系是knative service–> knative route–> knative ingress–>virtualservice。

各个资源关系

example-nginx对应的ingress资源和virtualservice资源

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
apiVersion: networking.internal.knative.dev/v1alpha1
kind: Ingress
metadata:
  annotations:
    networking.internal.knative.dev/rollout: '{"configurations":[{"configurationName":"example-nginx","percent":100,"revisions":[{"revisionName":"example-nginx-00006","percent":100}],"stepParams":{}}]}'
    networking.knative.dev/ingress.class: istio.ingress.networking.knative.dev
    serving.knative.dev/creator: admin
    serving.knative.dev/lastModifier: admin
  creationTimestamp: "2022-01-11T06:21:28Z"
  finalizers:
  - ingresses.networking.internal.knative.dev
  generation: 8
  labels:
    serving.knative.dev/route: example-nginx
    serving.knative.dev/routeNamespace: default
    serving.knative.dev/service: example-nginx
  name: example-nginx
  namespace: default
spec:
  httpOption: Enabled
  rules:
  - hosts:
    - example-nginx.default
    - example-nginx.default.svc
    - example-nginx.default.svc.cluster.local
    http:
      paths:
      - headers:
          Knative-Serving-Tag:
            exact: canary
        splits:
        - appendHeaders:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
          percent: 100
          serviceName: example-nginx-00006
          serviceNamespace: default
          servicePort: 80
      - appendHeaders:
          Knative-Serving-Default-Route: "true"
        splits:
        - appendHeaders:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
          percent: 100
          serviceName: example-nginx-00006
          serviceNamespace: default
          servicePort: 80
    visibility: ClusterLocal
  - hosts:
    - example-nginx.default.example.com
    http:
      paths:
      - headers:
          Knative-Serving-Tag:
            exact: canary
        splits:
        - appendHeaders:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
          percent: 100
          serviceName: example-nginx-00006
          serviceNamespace: default
          servicePort: 80
      - appendHeaders:
          Knative-Serving-Default-Route: "true"
        splits:
        - appendHeaders:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
          percent: 100
          serviceName: example-nginx-00006
          serviceNamespace: default
          servicePort: 80
    visibility: ExternalIP
  - hosts:
    - canary-example-nginx.default
    - canary-example-nginx.default.svc
    - canary-example-nginx.default.svc.cluster.local
    http:
      paths:
      - appendHeaders:
          Knative-Serving-Tag: canary
        splits:
        - appendHeaders:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
          percent: 100
          serviceName: example-nginx-00006
          serviceNamespace: default
          servicePort: 80
    visibility: ClusterLocal
  - hosts:
    - canary-example-nginx.default.example.com
    http:
      paths:
      - appendHeaders:
          Knative-Serving-Tag: canary
        splits:
        - appendHeaders:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
          percent: 100
          serviceName: example-nginx-00006
          serviceNamespace: default
          servicePort: 80
    visibility: ExternalIP
status:
  conditions:
  - lastTransitionTime: "2022-01-12T13:08:15Z"
    status: "True"
    type: LoadBalancerReady
  - lastTransitionTime: "2022-01-11T06:21:28Z"
    status: "True"
    type: NetworkConfigured
  - lastTransitionTime: "2022-01-12T13:08:15Z"
    status: "True"
    type: Ready
  observedGeneration: 8
  privateLoadBalancer:
    ingress:
    - domainInternal: knative-local-gateway.istio-system.svc.cluster.local
  publicLoadBalancer:
    ingress:
    - domainInternal: istio-ingressgateway.istio-system.svc.cluster.local

---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  annotations:
    networking.internal.knative.dev/rollout: '{"configurations":[{"configurationName":"example-nginx","percent":100,"revisions":[{"revisionName":"example-nginx-00006","percent":100}],"stepParams":{}}]}'
    networking.knative.dev/ingress.class: istio.ingress.networking.knative.dev
    serving.knative.dev/creator: admin
    serving.knative.dev/lastModifier: admin
  creationTimestamp: "2022-01-11T06:21:28Z"
  generation: 32
  labels:
    networking.internal.knative.dev/ingress: example-nginx
    serving.knative.dev/route: example-nginx
    serving.knative.dev/routeNamespace: default
  name: example-nginx-ingress
  namespace: default
  ownerReferences:
  - apiVersion: networking.internal.knative.dev/v1alpha1
    blockOwnerDeletion: true
    controller: true
    kind: Ingress
    name: example-nginx
    uid: 94592245-c9ef-4321-88a5-a7d3cd57b383
spec:
  gateways:
  - knative/knative-ingress-gateway
  - knative/knative-local-gateway
  hosts:
  - canary-example-nginx.default
  - canary-example-nginx.default.example.com
  - canary-example-nginx.default.svc
  - canary-example-nginx.default.svc.cluster.local
  - example-nginx.default
  - example-nginx.default.example.com
  - example-nginx.default.svc
  - example-nginx.default.svc.cluster.local
  http:
  - headers:
      request:
        set:
          K-Network-Hash: 1d94c6d2b2727715d4e9ef39ef170cfe3863d7bf72b0f373841b77e47be1c3cc
    match:
    - authority:
        prefix: example-nginx.default
      gateways:
      - knative/knative-local-gateway
      headers:
        K-Network-Hash:
          exact: override
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          K-Network-Hash: 1d94c6d2b2727715d4e9ef39ef170cfe3863d7bf72b0f373841b77e47be1c3cc
          Knative-Serving-Default-Route: "true"
    match:
    - authority:
        prefix: example-nginx.default
      gateways:
      - knative/knative-local-gateway
      headers:
        K-Network-Hash:
          exact: override
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - match:
    - authority:
        prefix: example-nginx.default
      gateways:
      - knative/knative-local-gateway
      headers:
        Knative-Serving-Tag:
          exact: canary
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          Knative-Serving-Default-Route: "true"
    match:
    - authority:
        prefix: example-nginx.default
      gateways:
      - knative/knative-local-gateway
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          K-Network-Hash: 1d94c6d2b2727715d4e9ef39ef170cfe3863d7bf72b0f373841b77e47be1c3cc
    match:
    - authority:
        prefix: example-nginx.default.example.com
      gateways:
      - knative/knative-ingress-gateway
      headers:
        K-Network-Hash:
          exact: override
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          K-Network-Hash: 1d94c6d2b2727715d4e9ef39ef170cfe3863d7bf72b0f373841b77e47be1c3cc
          Knative-Serving-Default-Route: "true"
    match:
    - authority:
        prefix: example-nginx.default.example.com
      gateways:
      - knative/knative-ingress-gateway
      headers:
        K-Network-Hash:
          exact: override
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - match:
    - authority:
        prefix: example-nginx.default.example.com
      gateways:
      - knative/knative-ingress-gateway
      headers:
        Knative-Serving-Tag:
          exact: canary
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          Knative-Serving-Default-Route: "true"
    match:
    - authority:
        prefix: example-nginx.default.example.com
      gateways:
      - knative/knative-ingress-gateway
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          K-Network-Hash: 1d94c6d2b2727715d4e9ef39ef170cfe3863d7bf72b0f373841b77e47be1c3cc
          Knative-Serving-Tag: canary
    match:
    - authority:
        prefix: canary-example-nginx.default
      gateways:
      - knative/knative-local-gateway
      headers:
        K-Network-Hash:
          exact: override
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          Knative-Serving-Tag: canary
    match:
    - authority:
        prefix: canary-example-nginx.default
      gateways:
      - knative/knative-local-gateway
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          K-Network-Hash: 1d94c6d2b2727715d4e9ef39ef170cfe3863d7bf72b0f373841b77e47be1c3cc
          Knative-Serving-Tag: canary
    match:
    - authority:
        prefix: canary-example-nginx.default.example.com
      gateways:
      - knative/knative-ingress-gateway
      headers:
        K-Network-Hash:
          exact: override
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - headers:
      request:
        set:
          Knative-Serving-Tag: canary
    match:
    - authority:
        prefix: canary-example-nginx.default.example.com
      gateways:
      - knative/knative-ingress-gateway
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100

DomainMapping对应的ingress和virtualservice

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
apiVersion: networking.internal.knative.dev/v1alpha1
kind: Ingress
metadata:
  annotations:
    networking.knative.dev/ingress.class: istio.ingress.networking.knative.dev
    serving.knative.dev/creator: admin
    serving.knative.dev/lastModifier: admin
  creationTimestamp: "2022-01-12T06:06:48Z"
  finalizers:
  - ingresses.networking.internal.knative.dev
  generation: 1
  labels:
    serving.knative.dev/domainMappingNamespace: default
    serving.knative.dev/domainMappingUID: 111ff4ba-a357-4861-a089-5c35b8760770
  name: out.com
  namespace: default
  ownerReferences:
  - apiVersion: serving.knative.dev/v1alpha1
    blockOwnerDeletion: true
    controller: true
    kind: DomainMapping
    name: out.com
    uid: 111ff4ba-a357-4861-a089-5c35b8760770
  resourceVersion: "393747308"
  uid: 81fa388f-1211-4d82-9cc4-46c4e38c79e6
spec:
  httpOption: Enabled
  rules:
  - hosts:
    - out.com
    http:
      paths:
      - rewriteHost: example-nginx.default.svc.cluster.local
        splits:
        - appendHeaders:
            K-Original-Host: out.com
          percent: 100
          serviceName: example-nginx
          serviceNamespace: default
          servicePort: 80
    visibility: ExternalIP
status:
  conditions:
  - lastTransitionTime: "2022-01-12T06:06:49Z"
    status: "True"
    type: LoadBalancerReady
  - lastTransitionTime: "2022-01-12T06:06:48Z"
    status: "True"
    type: NetworkConfigured
  - lastTransitionTime: "2022-01-12T06:06:49Z"
    status: "True"
    type: Ready
  observedGeneration: 1
  privateLoadBalancer:
    ingress:
    - domainInternal: knative-local-gateway.istio-system.svc.cluster.local
  publicLoadBalancer:
    ingress:
    - domainInternal: istio-ingressgateway.istio-system.svc.cluster.local
---
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  annotations:
    networking.knative.dev/ingress.class: istio.ingress.networking.knative.dev
    serving.knative.dev/creator: admin
    serving.knative.dev/lastModifier: admin
  creationTimestamp: "2022-01-12T06:06:48Z"
  generation: 1
  labels:
    networking.internal.knative.dev/ingress: out.com
  name: out.com-ingress
  namespace: default
  ownerReferences:
  - apiVersion: networking.internal.knative.dev/v1alpha1
    blockOwnerDeletion: true
    controller: true
    kind: Ingress
    name: out.com
    uid: 81fa388f-1211-4d82-9cc4-46c4e38c79e6
  resourceVersion: "393747283"

  uid: 61148c5f-5541-4b35-90d8-1c90c6601c66
spec:
  gateways:
  - knative/knative-ingress-gateway
  hosts:
  - out.com
  http:
  - headers:
      request:
        set:
          K-Network-Hash: b5c1fc426bf11303c158115fde3a06530e29d7aac00c60d6f469b6a0948ae362
    match:
    - authority:
        prefix: out.com
      gateways:
      - knative/knative-ingress-gateway
      headers:
        K-Network-Hash:
          exact: override
    retries: {}
    rewrite:
      authority: example-nginx.default.svc.cluster.local
    route:
    - destination:
        host: example-nginx.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            K-Original-Host: out.com
      weight: 100
  - match:
    - authority:
        prefix: out.com
      gateways:
      - knative/knative-ingress-gateway
    retries: {}
    rewrite:
      authority: example-nginx.default.svc.cluster.local
    route:
    - destination:
        host: example-nginx.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            K-Original-Host: out.com
      weight: 100

根据路径进行转发

一个域名由多个服务组成,则需要部署多个knative service。一个knative service会生成一个域名,那么一个对外服务的域名,会对应多个knative域名。

如何实现对外一个域名且根据路径进行转发呢?

  1. 使用官方的样例方法,直接操作virtualservice。
  2. 目前knative ingress支持根据header和path进行转发,可以直接操作knative ingress来实现。

这里讨论操作knative ingress来实现:

创建域名为url.com和路径为/url-1的knative ingress配置

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
apiVersion: networking.internal.knative.dev/v1alpha1
kind: Ingress
metadata:
  annotations:
    networking.knative.dev/ingress.class: istio.ingress.networking.knative.dev
  name: url-1
spec:
  httpOption: Enabled
  rules:
  - hosts:
    - url.com
    http:
      paths:
      - headers:
          version:
            exact: canary
          abc:
            exact: abc
        path: "/url-1"
        splits:
        - appendHeaders:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
          percent: 100
          serviceName: example-nginx-00006
          serviceNamespace: default
          servicePort: 80
    visibility: ExternalIP

生成的virtualservice

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
apiVersion: networking.istio.io/v1beta1
kind: VirtualService
metadata:
  annotations:
    networking.knative.dev/ingress.class: istio.ingress.networking.knative.dev
  creationTimestamp: "2022-01-15T10:35:46Z"
  generation: 1
  labels:
    networking.internal.knative.dev/ingress: url-1
  name: url-1-ingress
  namespace: default
  ownerReferences:
  - apiVersion: networking.internal.knative.dev/v1alpha1
    blockOwnerDeletion: true
    controller: true
    kind: Ingress
    name: url-1
    uid: 0a1f2e17-cacf-4656-8b75-8f3df9296372
  resourceVersion: "399816649"
  selfLink: /apis/networking.istio.io/v1beta1/namespaces/default/virtualservices/url-1-ingress
  uid: 58d750d0-150a-4baa-8100-030e7c8bd40c
spec:
  gateways:
  - knative/knative-ingress-gateway
  hosts:
  - url.com
  http:
  - headers:
      request:
        set:
          K-Network-Hash: 1eb7ef10f7c01124526d9c594a088852b7146b167a1641af4b62eb3278e2ff59
    match:
    - authority:
        prefix: url.com
      gateways:
      - knative/knative-ingress-gateway
      headers:
        K-Network-Hash:
          exact: override
      uri:
        prefix: /url-1
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100
  - match:
    - authority:
        prefix: url.com
      gateways:
      - knative/knative-ingress-gateway
      headers:
        version:
          exact: canary
      uri:
        prefix: /url-1
    retries: {}
    route:
    - destination:
        host: example-nginx-00006.default.svc.cluster.local
        port:
          number: 80
      headers:
        request:
          set:
            Knative-Serving-Namespace: default
            Knative-Serving-Revision: example-nginx-00006
      weight: 100

根据多个header的进行灰度

如何实现根据多个header进行转发呢?

  1. 直接操作virtualservice。
  2. 直接操作knative ingress来实现。

这里只讨论操作knative ingress来实现。

目前knative ingress只支持header头精确匹配,支持header头的or和and关系。

下面的例子中,version:canary abc:abc是and关系

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
apiVersion: networking.internal.knative.dev/v1alpha1
kind: Ingress
.....
spec:
  httpOption: Enabled
  rules:
  - hosts:
    - url.com
    http:
      paths:
      - headers:
          version:
            exact: canary
          abc:
            exact: abc
        path: "/url-1"

下面例子中,version:canary abc:abc是or关系

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
apiVersion: networking.internal.knative.dev/v1alpha1
kind: Ingress
.....
spec:
  httpOption: Enabled
  rules:
  - hosts:
    - url.com
    http:
      paths:
      - headers:
          version:
            exact: canary
        path: "/url-1"
      - headers:
          abc:
            exact: abc
        path: "/url-1"

net-istio实现中存在的问题

虽然knative ingress支持按路径转发和header转发,但是在net-istio实现中存在这几个问题:

  1. 在上面路径转发中的例子,定义的header version:canary abc:abc是and关系,但是最终生成的virtualservice里只有一个header匹配条件。相关issue链接https://github.com/knative-sandbox/net-istio/issues/847

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

      - match:
        - authority:
            prefix: url.com
          gateways:
          - knative/knative-ingress-gateway
          headers:
            version:
              exact: canary
          uri:
            prefix: /url-1

  2. net-istio会对新创建的ingress进行probe探测,它通过访问istio ingress gateway访问url.com:80/healthz,如果返回200(或返回200且返回header头里K-Network-Hash与ingress的spec hash值相等)则修改ingress status里的condition为true。

    但是生成的virtualservice规中并没有配置/healthz路径转发,导致探测返回404。虽然不影响virtualservice生成,但是ingress status一直是unknown状态。

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16

    status:
      conditions:
      - lastTransitionTime: "2022-01-15T10:35:46Z"
        message: Waiting for load balancer to be ready
        reason: Uninitialized
        status: Unknown
        type: LoadBalancerReady
      - lastTransitionTime: "2022-01-15T10:35:46Z"
        status: "True"
        type: NetworkConfigured
      - lastTransitionTime: "2022-01-15T10:35:46Z"
        message: Waiting for load balancer to be ready
        reason: Uninitialized
        status: Unknown
        type: Ready
      observedGeneration: 1


    相关issue链接https://github.com/knative-sandbox/net-istio/issues/848

    目前可以设置envoyfilter规则,匹配url.com的/healthz路径直接返回200来解决这个问题

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26

    apiVersion: networking.istio.io/v1alpha3
    kind: EnvoyFilter
    metadata:
      name: net-istio-probe
      namespace: namespace-of-sidecar
    spec:
      workloadSelector:
        labels:
          app: istio-ingressgateway
      configPatches:
      - applyTo: HTTP_ROUTE
        match:
          context: GATEWAY
          routeConfiguration:
            vhost:
              name: url.com:80
        patch:
          operation: INSERT_FIRST
          value:
            name: direct-healthz-response
            match:
              prefix: /healthz
            directResponse:
              body:
                inlineString: 'ok'
              status: 200


社区的进展

社区正在提议定义Dispatcher来完成基于path和header路由转发,底层还是基于ingress和virtualservice进行设计 。

设计原型:使用DomainMapping绑定域名和Dispatcher,Dispatcher里配置path和header路由转发,最终生成knative ingress。

相关issue:https://github.com/knative/serving/issues/11997

相关链接:

https://docs.google.com/document/d/1q3kkBhSqWMHm-TCFo56R-32C7-fo6G8KQH4lIGtc-U0/edit

https://github.com/knative/serving/issues/540

https://www.likakuli.com/posts/knative-pathfilter/

https://github.com/Kong/kubernetes-ingress-controller/issues/584

https://github.com/knative/docs/tree/main/code-samples/serving/knative-routing-go

总结

knative的ingress已经实现了基于路由转发规则,只是目前knative service还不支持。所以基于现在knative v1.1.0版本,实现绑定域名、基于路径和header转发的思路有两个。

  1. 直接操作virtualservice

    优点:除了支持路径匹配和header匹配外,还支持路径正则匹配、域名正则匹配等其他功能

    缺点: 只支持istio

  2. 操作knative ingress

    优点:使用knative 原生资源,跟随社区兼容性好,可以使用任意实现。

    缺点:只支持精确匹配 ,功能不够丰富。当然可以像k8s的ingress资源那样,具体实现通过label或annotation来扩展功能。
