遇到奇怪的现象：spark生成的job pod大概率都调度到同一节点，即不同的job的pod都会调度到同一节点，pod过于集中在某个节点上，出现调度不均衡现象。节点没有任何污点，节点资源空闲程度差不多。job没有任何nodeSelector、nodeAffinity、nodeName、PodTopologySpread。
环境：kubernetes 1.23，scheduler是默认的default-scheduler且为默认配置。pod是由batch job生成。
现象：pod一直调度到10.10.33.57节点上
scheduler的日志
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
I0314 18:10:20.837459 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-35003-2023031417-1-fgd78" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:20.868467 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-26818-2023031417-1-79l87" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:20.907352 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-35002-2023031417-1-6nzzb" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:21.296938 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-34857-2023031417-1-hgcnq" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:21.645678 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-25771-2023031417-1-jsq9b" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:22.029478 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-34856-2023031417-1-rxlld" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:33.312340 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-33264-2023031417-1-bxv5r" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:34.344112 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-34808-2023031418-1-s4ttx" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:34.736190 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-28084-2023031417-1-mp4qh" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:36.118176 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-35664-2023031417-1-kkkdn" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:42.858574 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-38872-2023031417-1-f7w7t" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:53.170750 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-24503-2023031417-1-xvj5z" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:10:53.222601 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-26243-2023031417-1-cm2ft" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:11:03.978335 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-25770-2023031417-1-g2w5w" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:11:05.319211 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-bi/ham-33521-2023031417-1-pkgnx" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:11:30.115938 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-44574-2023031417-1-4lfj7" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:11:48.207950 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-38967-2023031417-1-lr7n9" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:11:58.279178 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-38820-2023031417-1-q2k2n" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:12:09.313942 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-27890-2023031417-1-4f6w4" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:12:24.762822 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-29749-2023031417-1-ns8gl" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:12:49.411474 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-25769-2023031417-1-fzt5h" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:13:13.496645 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-32066-2023031417-1-wmspl" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:13:28.571884 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-25767-2023031417-1-qkwv7" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:13:31.570898 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-29671-2023031417-1-w4xl7" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
I0314 18:13:31.633205 308219 scheduler.go:621] "Successfully bound pod to node" pod="bigdata-hanoi-default/ham-31807-202303141800-2-9d7qx" node="10.10.33.57" evaluatedNodes=14 feasibleNodes=8
|
job资源定义
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
|
apiVersion: v1
items:
- apiVersion: batch/v1
kind: Job
metadata:
creationTimestamp: "2023-03-14T10:53:13Z"
generation: 1
labels:
hanoi2_task_id: ham-29183-202303141852-1
name: ham-29183-202303141852-1
namespace: bigdata-hanoi-default
resourceVersion: "259164839"
uid: bd6a6e70-00c3-4433-9637-fba91b579f20
spec:
backoffLimit: 0
completionMode: NonIndexed
completions: 1
parallelism: 1
selector:
matchLabels:
controller-uid: bd6a6e70-00c3-4433-9637-fba91b579f20
suspend: false
template:
metadata:
creationTimestamp: null
labels:
controller-uid: bd6a6e70-00c3-4433-9637-fba91b579f20
hanoi2_task_id: ham-29183-202303141852-1
job-name: ham-29183-202303141852-1
spec:
containers:
- args:
- 'curl http://xxx.com/script > /data/workspace/script && python2 /data/workspace/script'
command:
- /bin/bash
- -c
env:
- name: POD_IP
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: status.podIP
- name: SPARK_LOCAL_HOSTNAME
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: status.podIP
image: hive:vtest3
imagePullPolicy: IfNotPresent
name: ham-29183-202303141852-1
resources:
limits:
cpu: 200m
memory: 400Mi
requests:
cpu: 10m
memory: 100Mi
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
volumeMounts:
- mountPath: /data/nfs_txyun
name: nfs
dnsPolicy: ClusterFirst
|

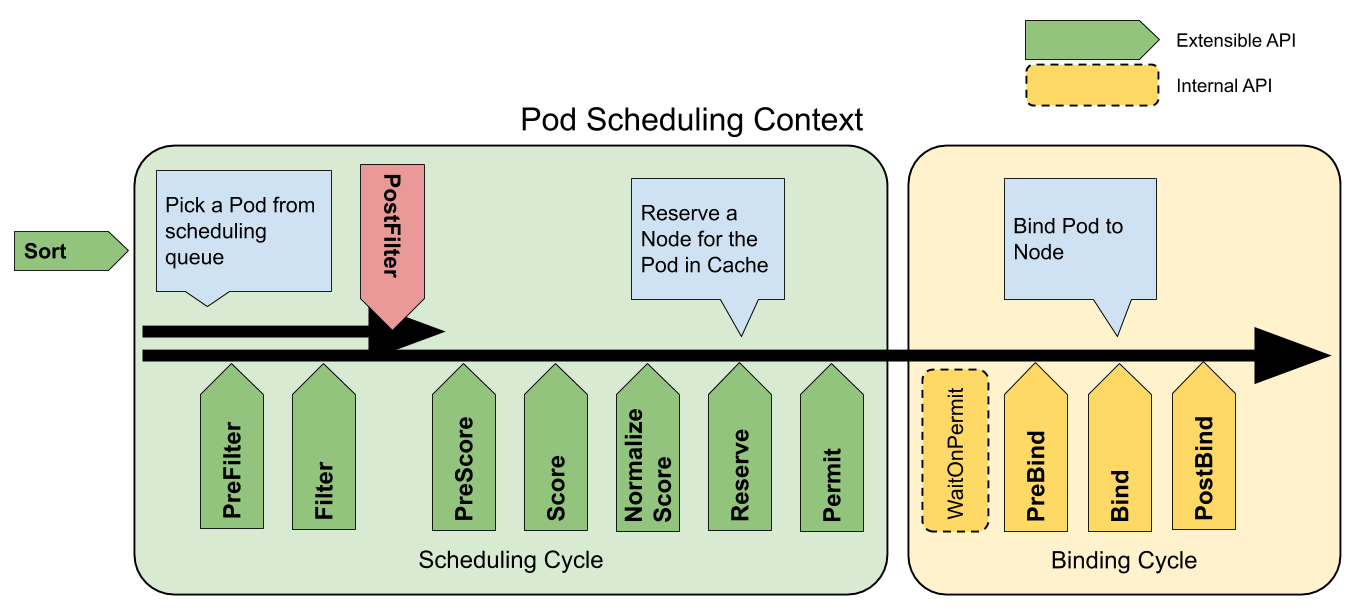

原理：scheduler的进行pod调度的处理流程中决定调度到那个节点的阶段是PreScore、Score、NormalizeScore，即对节点打分阶段。节点的分数最高（由多个一样高，则从里面随机选择一个节点），pod就绑定到这个节点。而默认的配置里打分阶段开启的插件为：NodeAffinity、NodeResourcesFit、VolumeBinding、PodTopologySpread、InterPodAffinity、NodeResourcesBalancedAllocation、ImageLocality、TaintToleration。具体可以查看官方文档Extension points scheduling-plugins
将scheduler的日志调到10，可以看到scheduler的过程。下面抓取一个pod的调度过程的日志进行分析
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
|
I0314 22:33:02.424871 278829 scheduling_queue.go:933] "About to try and schedule pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc"
I0314 22:33:02.424880 278829 scheduler.go:443] "Attempting to schedule pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc"
# 每个节点对应的"NodeResourcesBalancedAllocation"打分
I0314 22:33:02.425309 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.58" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:1610 memory:3017801728] resourceScore=93
I0314 22:33:02.425332 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.58" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:1110 memory:1969225728] resourceScore=97
I0314 22:33:02.425344 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.53" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:7600 memory:30323785728] requestedResource=map[cpu:2860 memory:5632950272] resourceScore=71
I0314 22:33:02.425345 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.54" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:7600 memory:30323785728] requestedResource=map[cpu:4815 memory:10583277568] resourceScore=50
I0314 22:33:02.425354 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.59" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739955200] requestedResource=map[cpu:1560 memory:2912944128] resourceScore=93
I0314 22:33:02.425354 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.55" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:6010 memory:10527703040] resourceScore=76
I0314 22:33:02.425364 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.53" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:7600 memory:30323785728] requestedResource=map[cpu:1860 memory:3535798272] resourceScore=93
I0314 22:33:02.425365 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.54" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:7600 memory:30323785728] requestedResource=map[cpu:3815 memory:8486125568] resourceScore=88
I0314 22:33:02.425372 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.59" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739955200] requestedResource=map[cpu:1060 memory:1864368128] resourceScore=97
I0314 22:33:02.425381 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.56" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:7335 memory:13727956992] resourceScore=70
I0314 22:33:02.425383 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.57" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:1520 memory:4343201792] resourceScore=93
I0314 22:33:02.425389 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.60" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:1620 memory:3122659328] resourceScore=93
I0314 22:33:02.425393 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.55" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:5010 memory:8640266240] resourceScore=87
I0314 22:33:02.425400 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.56" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:6335 memory:11630804992] resourceScore=84
I0314 22:33:02.425401 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.57" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:1020 memory:3294625792] resourceScore=97
I0314 22:33:02.425405 278829 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.60" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:1120 memory:2074083328] resourceScore=97
# 每个节点对应的NodeAffinity打分，由于没有NodeAffinity所以所有的节点为0
I0314 22:33:02.425477 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeAffinity" node="10.10.33.58" score=0
I0314 22:33:02.425487 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeAffinity" node="10.10.33.53" score=0
I0314 22:33:02.425495 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeAffinity" node="10.10.33.54" score=0
I0314 22:33:02.425502 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeAffinity" node="10.10.33.55" score=0
I0314 22:33:02.425513 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeAffinity" node="10.10.33.59" score=0
I0314 22:33:02.425518 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeAffinity" node="10.10.33.56" score=0
I0314 22:33:02.425524 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeAffinity" node="10.10.33.57" score=0
I0314 22:33:02.425529 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeAffinity" node="10.10.33.60" score=0
# 每个节点对应NodeResourcesFit打分
I0314 22:33:02.425534 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesFit" node="10.10.33.58" score=93
I0314 22:33:02.425539 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesFit" node="10.10.33.53" score=71
I0314 22:33:02.425544 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesFit" node="10.10.33.54" score=50
I0314 22:33:02.425549 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesFit" node="10.10.33.55" score=76
I0314 22:33:02.425554 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesFit" node="10.10.33.59" score=93
I0314 22:33:02.425560 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesFit" node="10.10.33.56" score=70
I0314 22:33:02.425567 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesFit" node="10.10.33.57" score=93
I0314 22:33:02.425574 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesFit" node="10.10.33.60" score=93
# 每个节点对应"VolumeBinding"打分
I0314 22:33:02.425581 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="VolumeBinding" node="10.10.33.58" score=0
I0314 22:33:02.425588 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="VolumeBinding" node="10.10.33.53" score=0
I0314 22:33:02.425594 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="VolumeBinding" node="10.10.33.54" score=0
I0314 22:33:02.425599 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="VolumeBinding" node="10.10.33.55" score=0
I0314 22:33:02.425604 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="VolumeBinding" node="10.10.33.59" score=0
I0314 22:33:02.425609 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="VolumeBinding" node="10.10.33.56" score=0
I0314 22:33:02.425614 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="VolumeBinding" node="10.10.33.57" score=0
I0314 22:33:02.425619 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="VolumeBinding" node="10.10.33.60" score=0
# 每个节点对应的"PodTopologySpread"打分，由于没有PodTopologySpread，所以都是200
I0314 22:33:02.425625 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="PodTopologySpread" node="10.10.33.58" score=200
I0314 22:33:02.425630 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="PodTopologySpread" node="10.10.33.53" score=200
I0314 22:33:02.425635 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="PodTopologySpread" node="10.10.33.54" score=200
I0314 22:33:02.425640 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="PodTopologySpread" node="10.10.33.55" score=200
I0314 22:33:02.425645 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="PodTopologySpread" node="10.10.33.59" score=200
I0314 22:33:02.425651 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="PodTopologySpread" node="10.10.33.56" score=200
I0314 22:33:02.425658 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="PodTopologySpread" node="10.10.33.57" score=200
I0314 22:33:02.425666 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="PodTopologySpread" node="10.10.33.60" score=200
# 每个节点对应的InterPodAffinity打分
I0314 22:33:02.425672 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="InterPodAffinity" node="10.10.33.58" score=0
I0314 22:33:02.425677 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="InterPodAffinity" node="10.10.33.53" score=0
I0314 22:33:02.425682 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="InterPodAffinity" node="10.10.33.54" score=0
I0314 22:33:02.425687 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="InterPodAffinity" node="10.10.33.55" score=0
I0314 22:33:02.425692 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="InterPodAffinity" node="10.10.33.59" score=0
I0314 22:33:02.425697 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="InterPodAffinity" node="10.10.33.56" score=0
I0314 22:33:02.425703 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="InterPodAffinity" node="10.10.33.57" score=0
I0314 22:33:02.425708 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="InterPodAffinity" node="10.10.33.60" score=0
# 每个节点对应的NodeResourcesBalancedAllocation打分
I0314 22:33:02.425713 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesBalancedAllocation" node="10.10.33.58" score=97
I0314 22:33:02.425719 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesBalancedAllocation" node="10.10.33.53" score=93
I0314 22:33:02.425724 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesBalancedAllocation" node="10.10.33.54" score=88
I0314 22:33:02.425729 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesBalancedAllocation" node="10.10.33.55" score=87
I0314 22:33:02.425735 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesBalancedAllocation" node="10.10.33.59" score=97
I0314 22:33:02.425742 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesBalancedAllocation" node="10.10.33.56" score=84
I0314 22:33:02.425750 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesBalancedAllocation" node="10.10.33.57" score=97
I0314 22:33:02.425756 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="NodeResourcesBalancedAllocation" node="10.10.33.60" score=97
# 每个节点对应的ImageLocality打分
I0314 22:33:02.425762 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="ImageLocality" node="10.10.33.58" score=0
I0314 22:33:02.425767 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="ImageLocality" node="10.10.33.53" score=26
I0314 22:33:02.425772 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="ImageLocality" node="10.10.33.54" score=54
I0314 22:33:02.425777 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="ImageLocality" node="10.10.33.55" score=100
I0314 22:33:02.425782 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="ImageLocality" node="10.10.33.59" score=0
I0314 22:33:02.425787 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="ImageLocality" node="10.10.33.56" score=83
I0314 22:33:02.425793 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="ImageLocality" node="10.10.33.57" score=100
I0314 22:33:02.425799 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="ImageLocality" node="10.10.33.60" score=0
# 每个节点对应的"TaintToleration"打分
I0314 22:33:02.425805 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="TaintToleration" node="10.10.33.58" score=300
I0314 22:33:02.425810 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="TaintToleration" node="10.10.33.53" score=300
I0314 22:33:02.425815 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="TaintToleration" node="10.10.33.54" score=300
I0314 22:33:02.425821 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="TaintToleration" node="10.10.33.55" score=300
I0314 22:33:02.425828 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="TaintToleration" node="10.10.33.59" score=300
I0314 22:33:02.425836 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="TaintToleration" node="10.10.33.56" score=300
I0314 22:33:02.425856 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="TaintToleration" node="10.10.33.57" score=300
I0314 22:33:02.425861 278829 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" plugin="TaintToleration" node="10.10.33.60" score=300
# 每个节点最后总的打分
I0314 22:33:02.425870 278829 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.58" score=690
I0314 22:33:02.425876 278829 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.53" score=690
I0314 22:33:02.425881 278829 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.54" score=692
I0314 22:33:02.425886 278829 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.55" score=763
I0314 22:33:02.425890 278829 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.59" score=690
I0314 22:33:02.425895 278829 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.56" score=737
I0314 22:33:02.425900 278829 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.57" score=790
I0314 22:33:02.425907 278829 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.60" score=690
I0314 22:33:02.426010 278829 default_binder.go:52] "Attempting to bind pod to node" pod="bigdata-hanoi-default/ham-38943-2023031421-1-jhmzc" node="10.10.33.57"
|
对日志中打分数据进行整理
|
10.10.33.53 |
10.10.33.54 |
10.10.33.55 |
10.10.33.56 |
10.10.33.57 |
10.10.33.58 |
10.10.33.59 |
10.10.33.60 |
| NodeAffinity |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
| NodeResourcesFit |
71 |
50 |
76 |
70 |
93 |
93 |
93 |
93 |
| VolumeBinding |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
| PodTopologySpread |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
| InterPodAffinity |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
| NodeResourcesBalancedAllocation |
93 |
88 |
87 |
84 |
97 |
97 |
97 |
97 |
| ImageLocality |
26 |
54 |
100 |
83 |
100 |
0 |
0 |
0 |
| TaintToleration |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
300 |
| Total Score |
690 |
692 |
763 |
737 |
790 |
690 |
690 |
690 |
分析数据：
- 打分第一（10.10.33.57）与第二的（10.10.33.55）差在节点资源相关的评分上
- 第二的（10.10.33.55）与第三的（10.10.33.56）差在
ImageLocality评分上（这个可能是scheduler刚启动数据没有完全同步bug https://github.com/kubernetes/kubernetes/issues/116673）
- 差距最大的打分项是
ImageLocality，导致最后的10.10.33.53、10.10.33.58、10.10.33.59、10.10.33.60分数最低不可能被调度到
新发现
发现调度到同一节点的pod的镜像，发现pod镜像都是一样。且这个镜像在10.10.33.53、10.10.33.58、10.10.33.59、10.10.33.60上都没有。
- 不同任务的job都是使用同一个镜像，而这个镜像只有在部分节点上10.10.33.53、10.10.33.54、10.10.33.55、10.10.33.56、10.10.33.57
- ImageLocality的设计是越大的镜像越要考虑节点上是否有镜像，导致有镜像节点和没有镜像节点的打分差距巨大
- 节点10.10.33.57剩余的资源比其他节点多
- 由于没有镜像的节点ImageLocality打分为0，导致10.10.33.53、10.10.33.58、10.10.33.59、10.10.33.60分数最低不可能被调度到
-
pod每个容器镜像打分
-
pod所有容器镜像总分=pod所有容器镜像分数相加
-
对pod所有容器镜像总分进行规整，让分数在范围内[24117248, pod里的容器数量*1048576000]，即[23MB, pod里的容器数量*1GB]
-
pod所有容器镜像总分小于24117248，则为24117248，即pod所有容器镜像总分=max(pod所有容器镜像总分，24117248)
-
pod所有容器镜像总分大于（pod里的容器数量*1048576000），则为（pod里的容器数量*1048576000），即pod所有容器镜像总分=min(pod所有容器镜像总分，pod里的容器数量*1048576000)
-
pod所有容器镜像总分在[24117248, pod里的容器数量*1048576000]，保持不动
-
最后分数=100*(pod所有容器镜像总分-24117248)/(pod里的容器数量*1048576000-24117248)
总结：ImageLocality最高分数为100，如果镜像超过1G同时镜像分布比例（拥有这个镜像节点数量/总的节点数量）比较高，那么大概率分数是100。这个插件设计初衷是越大的镜像越要考虑节点上是否有镜像，降低pod的启动时间。
-
获取node当前的resource的allocable值和添加pod request资源后总的resource的request总量（这里的resource指的是cpu、memory等资源类型）
-
计算出每种资源的request占allocable的比值，比值=request[resource]/allocable[resource]
-
计算出所有资源的request占allocable的比值的标准差，比如只有cpu、memory资源，则计算{cpu的比值、memory的比值}标准差
4.最后分数=100*(1-标准差)
总结：各种request资源占节点可分配资源比值越接近，则这个节点分数越高。设计插件初衷，应该是让节点的各种资源的分配百分比接近，避免节点上某种资源分配完了，另外一种资源还剩很多。
这里以默认的策略"LeastAllocated"
1.获取node当前的resource的allocable值和添加pod request资源后总的resource的request总量（这里的resource指的是cpu、memory等资源类型）
2.计算出每种resource资源allocable分配出request后剩余resource资源量占allocable的比率，即剩余resource资源比率=(allocable-request)*100/allocable
3.计算每种资源的分数=剩余resource资源比率*resource的权重，默认cpu和memory的权重都是1
4.计算所有资源的分数=每种资源的分数进行相加，计算所有资源的权重=每种资源的权重进行相加
5.最后分数=所有资源的分数/所有资源的权重
总结：分配request资源之后剩余资源越多的节点分数越高，即资源越充足的节点分数越高。
它对应的pod的podAffinity、podAntiAffinity配置。算法总体思路是根据节点上的pod的podAffinity、podAntiAffinity的配置topologyKey，计算topologyKey名称、节点labels[topologyKey名称]（topologyKey名称在节点label上的值）组成的二维map的分数。节点根据自身label从二维map中查找对应分数进行累加，得到节点的分数。在对节点分数进行规整化，输出最终的分数。
1.遍历的pod为待调度的pod有pod preferred affinity/pod Preferred AntiAffinity，则需要遍历节点上的所有pod，否则遍历节点上的带有affinity的pod.
2.计算待调度的pod的pod preferred affinity的相关打分–遍历的pod匹配待调度的pod的preferred affinity规则（节点上的pod的namespace匹配且labelSelector匹配），则二维map（topologyKey名称、节点labels[topologyKey名称]）里的值=原来的值+weight*匹配的pod数
3.计算待调度的pod的pod preferred AntiAffinity的相关打分–遍历的pod匹配待调度的pod的pod preferred AntiAffinity规则（节点上的pod的namespace匹配且labelSelector匹配），则二维map（topologyKey名称、节点labels[topologyKey名称]）里的值=原来的值-weight*匹配的pod数
4.计算遍历的pod的podAffinity的相关打分–如果待调度pod有label且scheduler配置文件里的InterPodAffinity.hardPodAffinityWeight大于0，且待调度的pod匹配遍历的pod的podAffinity，则二维map（topologyKey名称、节点labels[topologyKey名称]）里的值=原来的值+InterPodAffinity.hardPodAffinityWeight
5.计算遍历的pod的pod preferred affinity的相关打分–如果待调度的pod匹配遍历的pod的pod preferred Affinity，则二维map（topologyKey名称、节点labels[topologyKey名称]）里的值=原来的值+待调度pod的preferred affinity的weight
6.计算遍历的pod的pod preferred AntiAffinity的相关打分–如果待调度的pod匹配遍历的pod的pod preferred AntiAffinity，则二维map（topologyKey名称、节点labels[topologyKey名称]）里的值=原来的值-待调度pod的preferred affinity的weight
7.节点分数计算：遍历node的所有label，从二维map（topologyKey名称、节点labels[topologyKey名称]）里找到存在的值进行相加，这个值就是节点的分数。
8.对所有节点进行上面步骤处理，处理完后进行规整节点的分数。
- 遍历所有节点的分数找出最大值和最小值
- 如果节点分数都相同，则节点最终的分数都为0
- 否则，节点最后分数=100*(节点分数-最小值)/(最大值-最小值)
总结：节点分数最大值，那么最后分数一定是100，节点分数是最小值，那么最后分数一定是0，其他节点的分数在(0,100)。
解决思路：让节点间的打分差距减少，可以关闭某个插件的打分或开启某个插件的打分、或者调整插件的权重。
1.禁用ImageLocality
在kube-scheduler的启动配置文件里配置成如下
1
2
3
4
5
6
7
|
apiVersion: kubescheduler.config.k8s.io/v1beta3
profiles:
- plugins:
schedulerName: default-scheduler
score:
disabled:
- name: ImageLocality
|
2.设置podAntiAffinity
使用相同的镜像的pod打上相同的标签，并设置podAntiAffinity
1
2
3
4
5
6
7
8
9
10
11
12
|
spec:
affinity:
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: job-type
operator: In
values:
- spark
topologyKey: kubernetes.io/hostname
weight: 100
|
设置podAntiAffinity后，（这里节点由上线下线，节点跟上面有所不一样）经过一定时间后一个pod的调度日志
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
|
I0318 12:33:44.125838 241226 eventhandlers.go:118] "Add event for unscheduled pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4"
I0318 12:33:44.125881 241226 scheduling_queue.go:933] "About to try and schedule pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4"
I0318 12:33:44.125889 241226 scheduler.go:443] "Attempting to schedule pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4"
I0318 12:33:44.126192 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.61" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:6225 memory:11998855168] resourceScore=75
I0318 12:33:44.126198 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.62" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:4950 memory:13366198272] resourceScore=78
I0318 12:33:44.126203 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.58" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:4130 memory:11453595648] resourceScore=82
I0318 12:33:44.126210 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.59" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739955200] requestedResource=map[cpu:4155 memory:6479151104] resourceScore=84
I0318 12:33:44.126212 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.61" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:5325 memory:10111418368] resourceScore=86
I0318 12:33:44.126220 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.62" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:3850 memory:11269046272] resourceScore=91
I0318 12:33:44.126220 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.58" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:2930 memory:9146728448] resourceScore=94
I0318 12:33:44.126227 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.59" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739955200] requestedResource=map[cpu:3555 memory:5011144704] resourceScore=90
I0318 12:33:44.126232 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.60" resourceAllocationScorer="LeastAllocated" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:4800 memory:6340739072] resourceScore=82
I0318 12:33:44.126265 241226 resource_allocation.go:73] "Listing internal info for allocatable resources, requested resources and score" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.60" resourceAllocationScorer="NodeResourcesBalancedAllocation" allocatableResource=map[cpu:15600 memory:131739963392] requestedResource=map[cpu:4100 memory:4872732672] resourceScore=88
I0318 12:33:44.126351 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="VolumeBinding" node="10.10.33.61" score=0
I0318 12:33:44.126359 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="VolumeBinding" node="10.10.33.62" score=0
I0318 12:33:44.126365 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="VolumeBinding" node="10.10.33.58" score=0
I0318 12:33:44.126370 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="VolumeBinding" node="10.10.33.59" score=0
I0318 12:33:44.126375 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="VolumeBinding" node="10.10.33.60" score=0
I0318 12:33:44.126382 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="PodTopologySpread" node="10.10.33.61" score=200
I0318 12:33:44.126390 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="PodTopologySpread" node="10.10.33.62" score=200
I0318 12:33:44.126397 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="PodTopologySpread" node="10.10.33.58" score=200
I0318 12:33:44.126405 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="PodTopologySpread" node="10.10.33.59" score=200
I0318 12:33:44.126412 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="PodTopologySpread" node="10.10.33.60" score=200
I0318 12:33:44.126418 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="InterPodAffinity" node="10.10.33.61" score=200
I0318 12:33:44.126423 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="InterPodAffinity" node="10.10.33.62" score=0
I0318 12:33:44.126428 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="InterPodAffinity" node="10.10.33.58" score=0
I0318 12:33:44.126434 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="InterPodAffinity" node="10.10.33.59" score=0
I0318 12:33:44.126439 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="InterPodAffinity" node="10.10.33.60" score=0
I0318 12:33:44.126445 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesBalancedAllocation" node="10.10.33.61" score=86
I0318 12:33:44.126451 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesBalancedAllocation" node="10.10.33.62" score=91
I0318 12:33:44.126456 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesBalancedAllocation" node="10.10.33.58" score=94
I0318 12:33:44.126462 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesBalancedAllocation" node="10.10.33.59" score=90
I0318 12:33:44.126468 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesBalancedAllocation" node="10.10.33.60" score=88
I0318 12:33:44.126473 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="ImageLocality" node="10.10.33.61" score=100
I0318 12:33:44.126479 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="ImageLocality" node="10.10.33.62" score=100
I0318 12:33:44.126484 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="ImageLocality" node="10.10.33.58" score=100
I0318 12:33:44.126491 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="ImageLocality" node="10.10.33.59" score=100
I0318 12:33:44.126497 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="ImageLocality" node="10.10.33.60" score=100
I0318 12:33:44.126502 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="TaintToleration" node="10.10.33.61" score=300
I0318 12:33:44.126508 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="TaintToleration" node="10.10.33.62" score=300
I0318 12:33:44.126513 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="TaintToleration" node="10.10.33.58" score=300
I0318 12:33:44.126518 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="TaintToleration" node="10.10.33.59" score=300
I0318 12:33:44.126524 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="TaintToleration" node="10.10.33.60" score=300
I0318 12:33:44.126529 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeAffinity" node="10.10.33.61" score=0
I0318 12:33:44.126534 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeAffinity" node="10.10.33.62" score=0
I0318 12:33:44.126539 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeAffinity" node="10.10.33.58" score=0
I0318 12:33:44.126545 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeAffinity" node="10.10.33.59" score=0
I0318 12:33:44.126550 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeAffinity" node="10.10.33.60" score=0
I0318 12:33:44.126555 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesFit" node="10.10.33.61" score=75
I0318 12:33:44.126560 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesFit" node="10.10.33.62" score=78
I0318 12:33:44.126567 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesFit" node="10.10.33.58" score=82
I0318 12:33:44.126572 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesFit" node="10.10.33.59" score=84
I0318 12:33:44.126578 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" plugin="NodeResourcesFit" node="10.10.33.60" score=82
I0318 12:33:44.126588 241226 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.61" score=961
I0318 12:33:44.126594 241226 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.62" score=769
I0318 12:33:44.126599 241226 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.58" score=776
I0318 12:33:44.126605 241226 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.59" score=774
I0318 12:33:44.126612 241226 generic_scheduler.go:491] "Calculated node's final score for pod" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.60" score=770
I0318 12:33:44.126698 241226 default_binder.go:52] "Attempting to bind pod to node" pod="bigdata-hanoi-default/ham-29183-202303181232-1-w8wd4" node="10.10.33.61"
|
数据整理
|
10.10.33.58 |
10.10.33.59 |
10.10.33.60 |
10.10.33.61 |
10.10.33.62 |
| NodeAffinity |
0 |
0 |
0 |
0 |
0 |
| NodeResourcesFit |
82 |
84 |
82 |
75 |
78 |
| VolumeBinding |
0 |
0 |
0 |
0 |
0 |
| PodTopologySpread |
200 |
200 |
200 |
200 |
200 |
| InterPodAffinity |
0 |
0 |
0 |
200 |
0 |
| NodeResourcesBalancedAllocation |
94 |
90 |
88 |
86 |
91 |
| ImageLocality |
100 |
100 |
100 |
100 |
100 |
| TaintToleration |
300 |
300 |
300 |
300 |
300 |
| Total Score |
776 |
774 |
770 |
961 |
769 |
分析数据：
- ImageLocality的打分都是一样的，说明每个节点上都有这个镜像
- 10.10.33.58、10.10.33.59、10.10.33.60、10.10.33.62上都有相同类型的pod在运行，所以InterPodAffinity打分为0，只有10.10.33.61上面没有这个类型任务的pod，所以打分为200（这里乘以了每个插件的权重，InterPodAffinity的权重默认为2）
下面日志展现是InterPodAffinity各种打分情况，说明pod基本都是在节点间均衡调度
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
|
I0318 12:35:54.480311 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-24503-2023031811-1-hzvjd" plugin="InterPodAffinity" node="10.10.33.58" score=150
I0318 12:35:54.480316 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-24503-2023031811-1-hzvjd" plugin="InterPodAffinity" node="10.10.33.61" score=100
I0318 12:35:54.480321 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-24503-2023031811-1-hzvjd" plugin="InterPodAffinity" node="10.10.33.62" score=0
I0318 12:35:54.480327 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-24503-2023031811-1-hzvjd" plugin="InterPodAffinity" node="10.10.33.60" score=200
I0318 12:35:54.480332 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-24503-2023031811-1-hzvjd" plugin="InterPodAffinity" node="10.10.33.59" score=50
I0318 12:34:14.726775 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-35680-2023031811-1-rx6sz" plugin="InterPodAffinity" node="10.10.33.62" score=0
I0318 12:34:14.726784 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-35680-2023031811-1-rx6sz" plugin="InterPodAffinity" node="10.10.33.58" score=0
I0318 12:34:14.726790 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-35680-2023031811-1-rx6sz" plugin="InterPodAffinity" node="10.10.33.60" score=200
I0318 12:34:14.726796 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-35680-2023031811-1-rx6sz" plugin="InterPodAffinity" node="10.10.33.59" score=0
I0318 12:34:14.726802 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-35680-2023031811-1-rx6sz" plugin="InterPodAffinity" node="10.10.33.61" score=0
I0318 12:36:18.573939 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-44003-202303181230-1-bb9kn" plugin="InterPodAffinity" node="10.10.33.58" score=200
I0318 12:36:18.573946 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-44003-202303181230-1-bb9kn" plugin="InterPodAffinity" node="10.10.33.61" score=132
I0318 12:36:18.573953 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-44003-202303181230-1-bb9kn" plugin="InterPodAffinity" node="10.10.33.62" score=0
I0318 12:36:18.573959 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-44003-202303181230-1-bb9kn" plugin="InterPodAffinity" node="10.10.33.59" score=132
I0318 12:36:18.573965 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-44003-202303181230-1-bb9kn" plugin="InterPodAffinity" node="10.10.33.60" score=200
I0318 12:36:19.612833 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-37288-202303181215-1-8rbrl" plugin="InterPodAffinity" node="10.10.33.58" score=0
I0318 12:36:19.612839 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-37288-202303181215-1-8rbrl" plugin="InterPodAffinity" node="10.10.33.61" score=200
I0318 12:36:19.612844 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-37288-202303181215-1-8rbrl" plugin="InterPodAffinity" node="10.10.33.62" score=0
I0318 12:36:19.612849 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-37288-202303181215-1-8rbrl" plugin="InterPodAffinity" node="10.10.33.60" score=200
I0318 12:36:19.612854 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-37288-202303181215-1-8rbrl" plugin="InterPodAffinity" node="10.10.33.59" score=200
I0320 12:43:32.206742 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-39074-2023032011-1-fv6h6" plugin="InterPodAffinity" node="10.10.33.58" score=0
I0320 12:43:32.206747 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-39074-2023032011-1-fv6h6" plugin="InterPodAffinity" node="10.10.33.62" score=0
I0320 12:43:32.206754 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-39074-2023032011-1-fv6h6" plugin="InterPodAffinity" node="10.10.33.60" score=100
I0320 12:43:32.206759 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-39074-2023032011-1-fv6h6" plugin="InterPodAffinity" node="10.10.33.61" score=200
I0320 12:43:32.206764 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-39074-2023032011-1-fv6h6" plugin="InterPodAffinity" node="10.10.33.59" score=0
I0320 13:13:09.948985 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-25767-2023032012-1-nnj7k" plugin="InterPodAffinity" node="10.10.33.61" score=200
I0320 13:13:09.948990 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-25767-2023032012-1-nnj7k" plugin="InterPodAffinity" node="10.10.33.62" score=200
I0320 13:13:09.948995 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-25767-2023032012-1-nnj7k" plugin="InterPodAffinity" node="10.10.33.58" score=0
I0320 13:13:09.949001 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-25767-2023032012-1-nnj7k" plugin="InterPodAffinity" node="10.10.33.60" score=200
I0320 13:13:09.949005 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-25767-2023032012-1-nnj7k" plugin="InterPodAffinity" node="10.10.33.59" score=0
I0320 13:12:09.243515 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-43308-2023032012-1-7ncz7" plugin="InterPodAffinity" node="10.10.33.61" score=200
I0320 13:12:09.243522 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-43308-2023032012-1-7ncz7" plugin="InterPodAffinity" node="10.10.33.58" score=0
I0320 13:12:09.243529 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-43308-2023032012-1-7ncz7" plugin="InterPodAffinity" node="10.10.33.60" score=0
I0320 13:12:09.243535 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-43308-2023032012-1-7ncz7" plugin="InterPodAffinity" node="10.10.33.62" score=0
I0320 13:12:09.243541 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-43308-2023032012-1-7ncz7" plugin="InterPodAffinity" node="10.10.33.59" score=0
I0320 13:10:51.044472 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29621-2023032012-1-gm5v7" plugin="InterPodAffinity" node="10.10.33.58" score=0
I0320 13:10:51.044478 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29621-2023032012-1-gm5v7" plugin="InterPodAffinity" node="10.10.33.61" score=0
I0320 13:10:51.044484 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29621-2023032012-1-gm5v7" plugin="InterPodAffinity" node="10.10.33.62" score=0
I0320 13:10:51.044489 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29621-2023032012-1-gm5v7" plugin="InterPodAffinity" node="10.10.33.60" score=0
I0320 13:10:51.044494 241226 generic_scheduler.go:434] "Plugin scored node for pod" pod="bigdata-hanoi-default/ham-29621-2023032012-1-gm5v7" plugin="InterPodAffinity" node="10.10.33.59" score=0
|
出现pod都往一个节点调度，触发条件是，节点间的资源剩余量差不多，且镜像大于1G，且pod都是使用同一个镜像。而job创建的pod执行时间比较短，容易造成节点资源余量差不多。而spark任务用的是python环境镜像都是4G左右，容易让ImageLocality打分接近100。
https://github.com/kubernetes/kubernetes/issues/91204
https://github.com/kubernetes/kubernetes/issues/42281
https://stackoverflow.com/questions/73278919/why-would-the-kubernetes-scheduler-always-place-my-pod-replicas-on-the-same-node
https://github.com/kubernetes/kubernetes/issues/110149
